De-Sta-Co

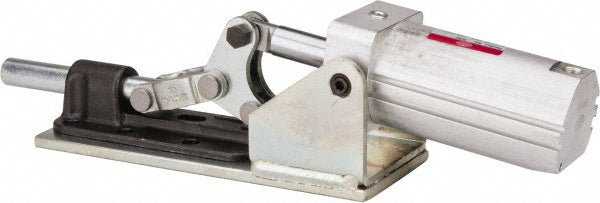

Toggle Clamp - De-Sta-Co 830
MFR# 830
$409.47List $454.08
Save 9%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 830 is a toggle clamp.
Specifications
Clamping force 5 bar n3582.00
Clamping force at 5 bar3582
Length distance between mount holes1.3800; 1.6200
Load capacity lb11120.6N; 2500lb; 2500.00
Load capacity n11120.6N; 2500lb; 11120.60
Maximum air pressure10bar
Maximum air pressure bar10.00
Maximum air pressure psig145.00
Maximum operating temperature c90.00
Maximum operating temperature f194.00
Minimum operating temperature c-10.00
Minimum operating temperature f-10C; 14F; 14.00
Mounting hole diameter (mm)0.34; 8.64
Overall closed height3.59
Overall closed length11.43
Plunger centerline height1.0600
Plunger diameter in3/8
Plunger thread size3/8-16 in
Plunger travel1.2500
Port size1/8 NPT
Power typePneumatic
Sensor compatibilityRound; T-Slot
Width distance between mount holes in1-5/8
