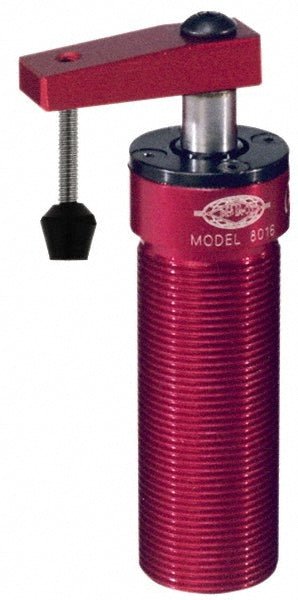

Swing Clamp - De-Sta-Co 8416-LA
MFR# 8416-LA
$498.94List $530.06
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 8416-LA is a swing clamp.
Specifications
Action typeSingle
Bin3.17
Body diameter2.1299
Body length3.1693
Body thread size1-3/4-12
Body width diameter2.1299
Clamping force lb67.44
Clamping force n300.00
Clamp arm compatibility821512 Standard Clamping Arm; 821554 T-Style Clamping Arm; 821555 T-Style Clamping Arm; 841512 Standard Clamping Arm
C in0.7500
E in2.1300
FeaturesThreaded Body Mounted in a Tapped Hole
F in0.9800
IncludesClamping Arm; Spindle
K in1.9400
Maximum operating pressure psi130
Minimum operating pressure bar3.00
Mount typeThreaded Body
Operating volume cc19.17 (Clamp); 23.27 (Unclamp)
Operating volume cu in1.1700 (Clamp); 1.4200 (Unclamp)
Operation typeAir
Overall open length6.1400
Port size1/8 NPT
Rod diameter0.5000
Swing directionLeft Hand
Tapped depth0.3800
Total stroke distance1.2500
Vertical stroke distance in1/2
