De-Sta-Co

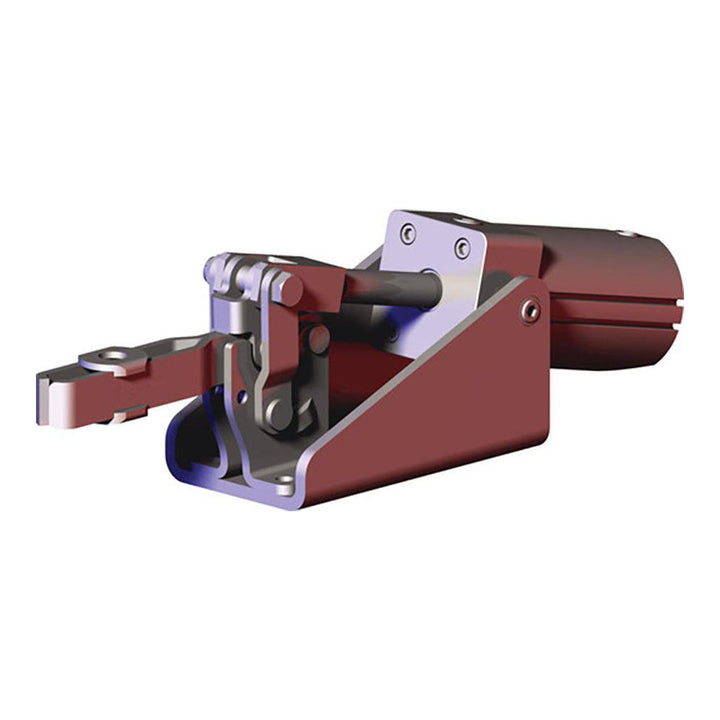

Toggle Clamp - De-Sta-Co 847-U-LC
MFR# 847-U-LC
$261.01
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 847-U-LC is a toggle clamp.
Specifications
Bar end typeClosed
Bar extension4.8700
Bar opening degrees94
Bar styleSolid
Cylinder bore size2.0500
F 41
Height under bar2.2500
Holding capacity inner lb1000.00
Holding capacity inner n4450.00
IncludesFlanged Washer
Length distance between mount holes1.2500
Maximum air pressure bar10.00
Maximum air pressure psig145.00
Maximum mechanical advantage1.9:1
Maximum operating temperature c90
Maximum operating temperature f194
Minimum operating temperature c-10
Minimum operating temperature f14
Mounting hole size0.3400
Mounting orientationHorizontal
Outer clamping force n2018.00
Overall closed length10.3800
Overall open height9.2700
Overall open length15.2500
Port size1/4 NPT
Power typePneumatic
Width distance between mount holes1.7800
