De-Sta-Co

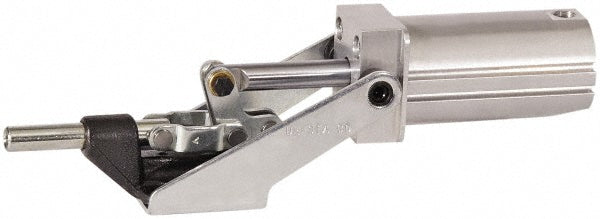

Toggle Clamp - De-Sta-Co 850
MFR# 850
$745.56List $826.81
Save 9%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 850 is a toggle clamp.
Specifications
Clamping force 5 bar n5522.00
Clamping force at 5 bar5522
Length distance between mount holes2.7500
Load capacity lb71171.5N; 16000lb; 16000.00
Load capacity n71171.5N; 16000lb; 71171.50
Maximum air pressure10bar
Maximum air pressure bar10.00
Maximum air pressure psig145.00
Maximum operating temperature c90.00
Maximum operating temperature f194.00
Minimum operating temperature c-10.00
Minimum operating temperature f-10C; 14F; 14.00
Mounting hole diameter (mm)0.41; 10.41
Overall closed height7.21
Overall closed length20.56
Plunger centerline height2.6300
Plunger diameter in5/8
Plunger thread size5/8-11 in
Plunger travel2.0000
Port size1/8 NPT
Power typePneumatic
Sensor compatibilityRound; T-Slot
Width distance between mount holes in2-1/4
