De-Sta-Co

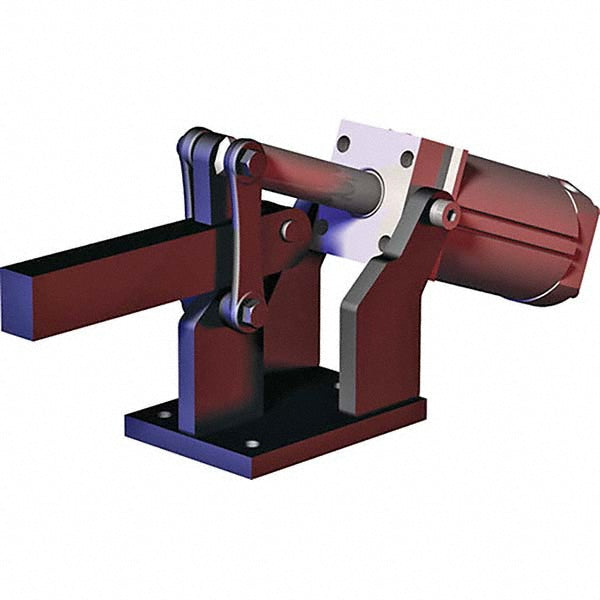

Toggle Clamp - De-Sta-Co 858
MFR# 858
$696.76List $772.68
Save 9%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 858 is a toggle clamp.
Specifications
Bar extension4.8100
Bar opening degrees96
Bar styleSolid
Height under bar3.8500
Holding capacity inner lb4000.00
Holding capacity inner n17800.00
Length distance between mount holes4.2500
Maximum air pressure bar10.00
Maximum air pressure psig145.00
Maximum mechanical advantage4.4:2.3
Maximum operating temperature c90
Maximum operating temperature f194
Minimum operating temperature c-10
Minimum operating temperature f14
Mounting hole size0.4100
Mounting orientationHorizontal
Outer clamping force lb800.00
Outer clamping force n3585.00
Outer load capacity lb2000.00
Outer load capacity n8900.00
Overall closed height7.1200
Overall closed length17.5200
Overall open height12.2700
Port size1/4 NPT
Power typePneumatic
Width distance between mount holes2.7500
