De-Sta-Co

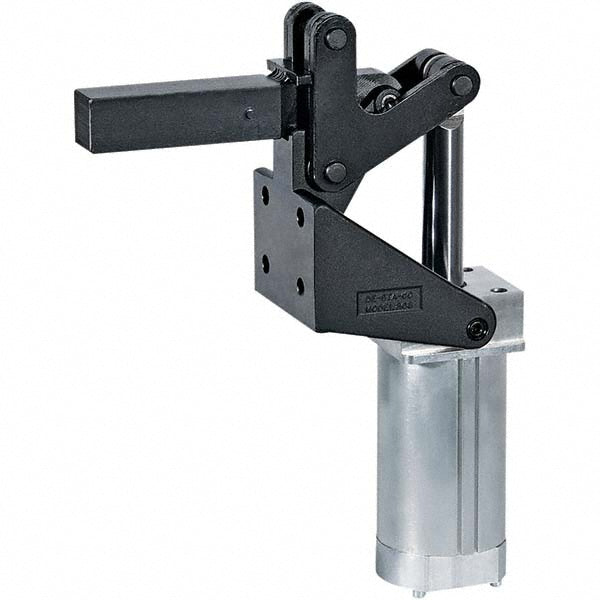

Toggle Clamp - De-Sta-Co 868
MFR# 868
$816.73List $905.73
Save 9%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 868 is a toggle clamp.
Specifications
Bar extension4.6890
Bar opening degrees91
Bar styleSolid
Bin10.38
C projection gage line to nose end4.19
F in1.6300
G in4.0000
Height under bar4.2000
Holding capacity inner lb4000.00
Holding capacity inner n17800.00
H field4.6900
J in0.4100
Length distance between mount holes2.2520
Manufacturer s part number868
Maximum air pressure bar10.00
Maximum air pressure psig145.00
Maximum mechanical advantage4.9:2.3
Maximum operating temperature c90
Maximum operating temperature f194
Minimum operating temperature c-10
Minimum operating temperature f14
Mounting hole size0.4000
Mounting orientationVertical
Outer clamping force lb800.00
Outer clamping force n3585.00
Outer load capacity lb2400.00
Outer load capacity n10675.00
Overall closed height6.9500
Overall closed length10.1700
Overall length1.2500
Port size1/4 NPT
Power typePneumatic
Width distance between mount holes1.6299
