De-Sta-Co

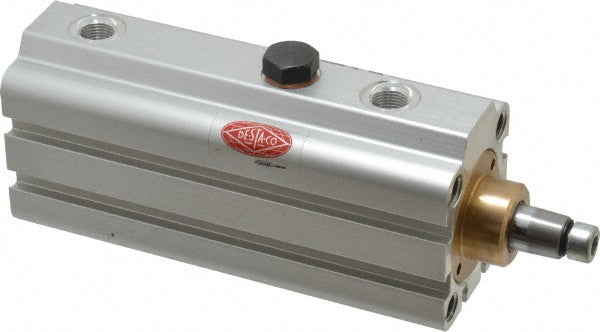

Swing Clamp - De-Sta-Co 89R32-010-2
MFR# 89R32-010-2
$429.55List $430.50
Save 0%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 89R32-010-2 is a swing clamp.
Specifications
Action typeSingle
Arm length0.4300
Base length (mm)60.00
Base width (mm)45.00
Body diameter1.2600
Body length4.9200
Body width diameter1.2600
Clamping force lb67.00
Clamping force n298.03
Clamp arm compatibility8JG-217-1 Standard Clamping Arm; 8MA-086-1 Blank Clamping Arm
Distance between mounting holes lengthwise36.00
FeaturesRobust Design; Sensor Ready
Maximum operating pressure bar10.00
Maximum operating pressure psi145
Maximum operating pressure psig145
Minimum operating pressure bar2.07
Minimum operating pressure psig30
Mounting hole thread sizeM8
Mount typeFlange
Operating volume cc19.40 (Clamp); 22.50 (Unclamp)
Operation typeAir
Port sizeG1/8
Rod diameter0.4700
Rod thread sizeM6
Swing directionAdjustable (Right, Left, Straight)
Total stroke distance1.1000
Travel length18.00
Vertical stroke distance0.3900
Width distance between mount holes32.00mm
