De-Sta-Co

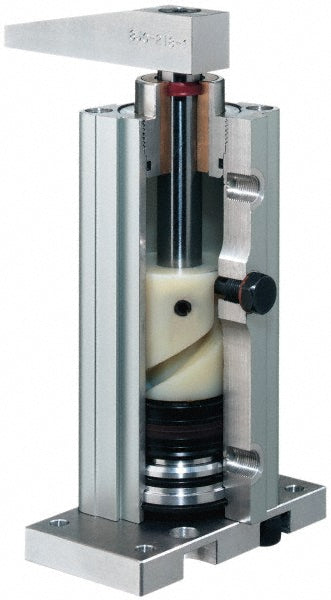

Swing Clamp - De-Sta-Co 89R40-025-2
MFR# 89R40-025-2
$501.87List $573.81
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 89R40-025-2 is a swing clamp.
Specifications
Action typeSingle
Arm length0.4300
Base length (mm)66.00
Base width (mm)54.50
Body diameter1.5700
Body length6.6900
Body width diameter1.5700
Clamping force lb103.00
Clamping force n458.17
Clamp arm compatibility8JG-218-1 Standard Clamping Arm; 8MA-087-1 Blank Clamping Arm
Distance between mounting holes lengthwise40.00
FeaturesRobust Design; Sensor Ready
Maximum operating pressure bar10.00
Maximum operating pressure psi145
Maximum operating pressure psig145
Minimum operating pressure bar2.07
Minimum operating pressure psig30
Mounting hole thread sizeM8
Mount typeFlange
Operating volume cc49.10 (Clamp); 58.40 (Unclamp)
Operation typeAir
Port sizeG1/8
Rod diameter0.6300
Rod thread sizeM8
Swing directionAdjustable (Right, Left, Straight)
Total stroke distance1.8300
Travel length21.50
Vertical stroke distance0.9800
Width distance between mount holes40.00mm
