De-Sta-Co

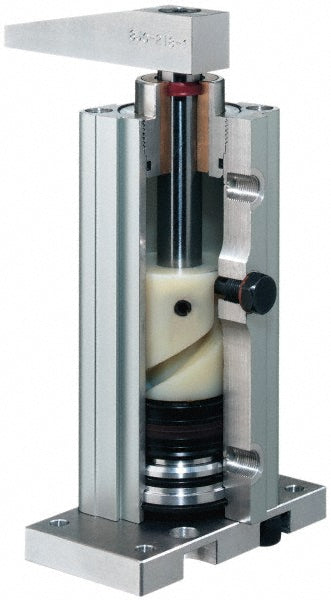

Swing Clamp - De-Sta-Co 89R63-025-2
MFR# 89R63-025-2
$683.31List $725.93
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 89R63-025-2 is a swing clamp.
Specifications
Action typeSingle
Arm length0.5900
Base length (mm)95.00
Base width (mm)80.00
Body diameter2.4800
Body length8.3300
Body width diameter2.4800
Clamping force lb263.00
Clamping force n1169.88
Clamp arm compatibility8JG-220-1 Standard Clamping Arm; 8MA-089-1 Blank Clamping Arm
Distance between mounting holes lengthwise62.00
FeaturesRobust Design; Sensor Ready
Maximum operating pressure bar10.00
Maximum operating pressure psi145
Maximum operating pressure psig145
Minimum operating pressure bar2.07
Minimum operating pressure psig30
Mounting hole thread sizeM12
Mount typeFlange
Operating volume cc182.40 (Unclamp)
Operation typeAir
Port sizeG1/4
Rod diameter0.7800
Rod thread sizeM10
Swing directionAdjustable (Right, Left, Straight)
Total stroke distance2.3000
Travel length33.50
Vertical stroke distance0.9800
Width distance between mount holes62.00mm
