Dorian Tool
TPGH-160308-UEN-DNU25GT Solid Carbide Insert, Grade DNU25GT - Dorian Tool 73310171718
MFR# 73310171718ISO/ANSI# TPGH-160308-UEN-DNU25GTCat# TPGH-322-UEN-DNU25GTSeries TPGH-UEN
$13.77List $17.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeDNU25GT
MaterialSolid Carbide
Description

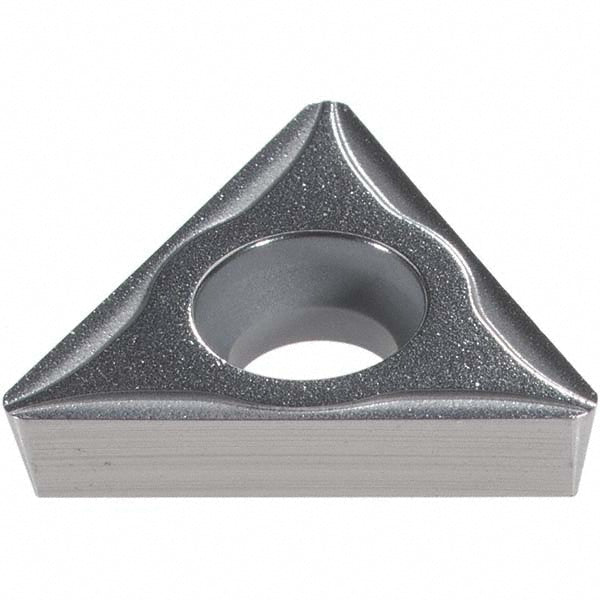

The Dorian Tool 73310171718 is a TPGH-160308-UEN-DNU25GT solid carbide indexable insert, grade DNU25GT.
Specifications
Ansi codeTPGH322UEN
Chip breakerUEN
Clearance codeP
Coating processUncoated
Corner radius in1/32
Cutting directionNeutral
Cutting edge styleHoned
Hole diameter0.1780
Included angle60.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code322
Insert styleTPGH
Insert thickness in1/8
Iso codeTPGH-160308-UEN-DNU25GT
Manufacturers catalog numberTPGH-322-UEN-DNU25GT
Manufacturer gradeDNU25GT
Material gradeC1; C2
Maximum depth of cut0.2400
Multi use toolNo
RakePositive
Rake angle7
Relief angle11
StandardsANSI; ISO
Tolerance codeG
