Dorian Tool

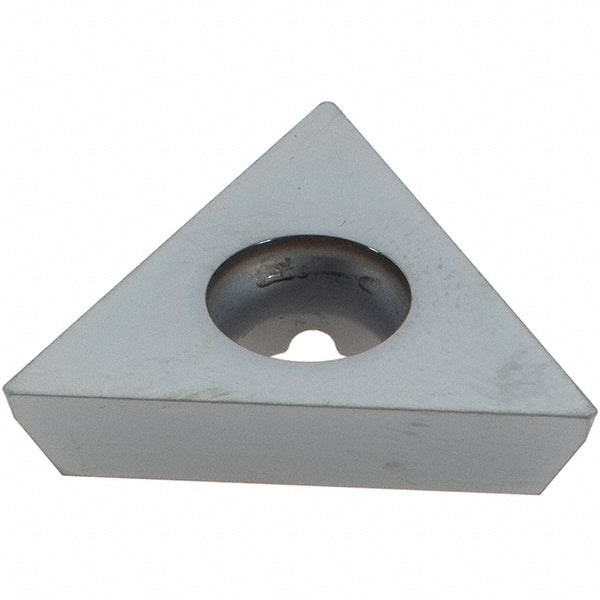

TDEX-220404-XDEN-DNP10HM Solid Carbide Insert, Grade DNP10HM, Coated - Dorian Tool 73310195469
MFR# 73310195469ISO/ANSI# TDEX-220404-XDEN-DNP10HMCat# TDEX-220404-XDEN-DNP10HMSeries TDEX
$26.94List $34.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeDNP10HM
MaterialSolid Carbide
CoatingCoated
Description
The Dorian Tool 73310195469 is a TDEX-220404-XDEN-DNP10HM solid carbide indexable insert, grade DNP10HM, Coated coated. Suited for cast iron.
Specifications
Ansi codeTDEX-220404-XDEN-DNP10HM
Chip breakerDNP
Coating finishCoated
Coating processPVD
Corner radius0.0150
Included angle degree60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size22
Insert size code220404
Insert styleTDEX
Iso codeTDEX-220404-XDEN-DNP10HM
Length0.8661
Manufacturers catalog numberTDEX-220404-XDEN-DNP10HM
Manufacturer gradeDNP10HM
Material applicationCast Iron
Material gradeK10
Primary workpiece materialCast Iron
RakePositive
Relief angle15
Single or double sided insertSingle
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.8661
