3/8" HSS Drill Bit, TiN, 118° point - Dormer Pramet 5966637
MFR# 5966637Series A012
$7.85List $10.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
CoatingTiN
Description

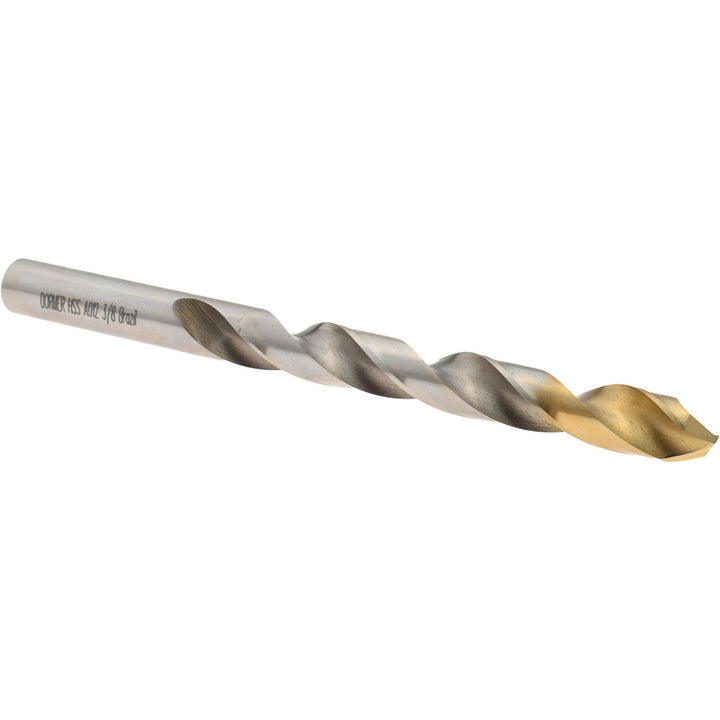

The Dormer Pramet 5966637 is a 3/8" HSS drill bit with a TiN finish, 118° point. Suited for steel, cast iron. 3-5/8 flute length, 5 overall length. Series A012.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit materialHSS
Drill bit size in3/8
Drill bit size range0.3500 - 0.4000
Drill point angle degrees118
Flute by diameter ratio4xD
Flute length in3-5/8
Flute typeRegular Spiral
Overall length in5
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter0.3750
Shank typeStraight
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationSelf-Centering
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
