Dormer Pramet

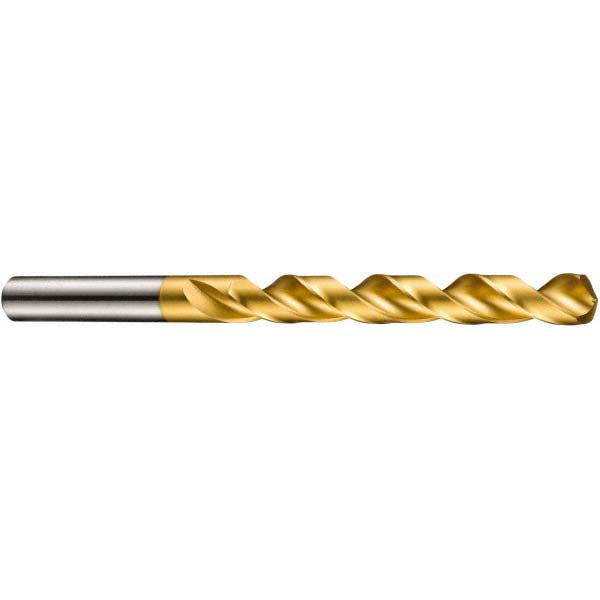

0.4016" HSS Drill Bit, TiN, 130° point - Dormer Pramet 5970055
MFR# 5970055Series A510
$43.32List $55.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Dormer Pramet 5970055 is a 0.4016" HSS drill bit with a TiN finish, 130° point. Suited for aluminum & non-ferrous, composites. Series A510.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size0.4016
Drill bit size range0.4000 - 0.5000
Drill point angle degrees130
Flute by diameter ratio4xD
Flute length3.4252
Flute typeRegular Spiral
Overall length5.2362
Point typeWeb-Thinned
Primary workpiece materialAluminum & Non-Ferrous; Composites
Shank diameter0.2813
Shank length (mm)46
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
