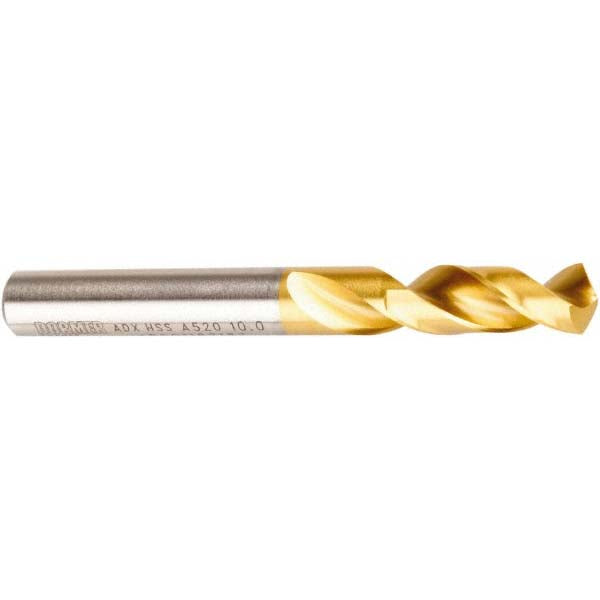

0.4134" HSS Drill Bit, TiN, 130° point - Dormer Pramet 5970178

Dormer Pramet

0.4134" HSS Drill Bit, TiN, 130° point - Dormer Pramet 5970178

MFR# 5970178Series A520

$47.05List $60.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The Dormer Pramet 5970178 is a 0.4134" HSS drill bit with a TiN finish, 130° point. Suited for alloy steel, aluminum, aluminum alloy, brass, bronze, carbon steel, cast iron, copper, graphite, hardened steel, high strength bronze, magnesium, magnesium alloy, malleable iron, nickel, nickel alloy, reinforced plastic materials, stainless steel, steel. Series A520.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy Duty
Drill bit size0.4134
Drill bit size range0.4000 to 0.4500
Drill point angle130
Flute length (mm)43.00
Flute typeRegular Spiral
Number of flutes2
Overall length3.5039
Point typeWeb-Thinned
Primary workpiece materialAlloy Steel; Aluminum; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Graphite; Hardened Steel; High Strength Bronze; Magnesium; Magnesium Alloy; Malleable Iron; Nickel; Nickel Alloy; Reinforced Plastic Materials; Stainless Steel; Steel
Shank diameter0.4134
Shank length1.8110
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
Tool materialHSS
Web configurationParallel
Web thinningWeb-Thinned
