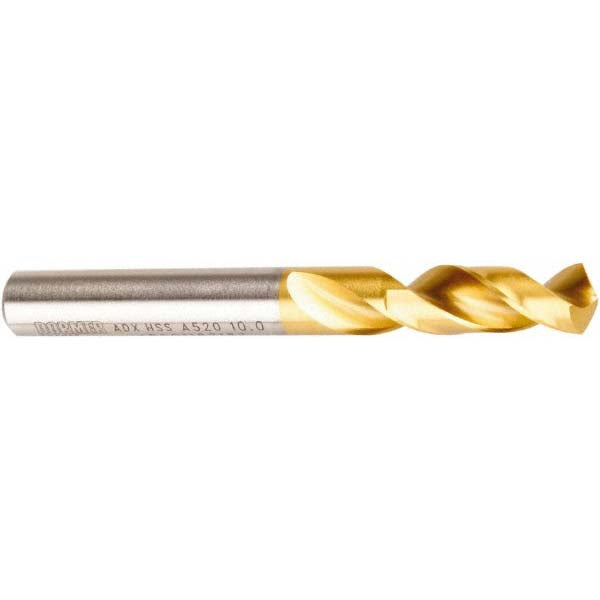

0.2165" HSS Screw Machine Drill Bit, TiN, 130° point - Dormer Pramet 5970508

Dormer Pramet

0.2165" HSS Screw Machine Drill Bit, TiN, 130° point - Dormer Pramet 5970508

MFR# 5970508Series A520

$15.01List $19.25 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The Dormer Pramet 5970508 is a 0.2165" HSS Screw Machine drill bit with a TiN finish, 130° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. Series A520.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy Duty
Drill bit size0.2165
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio2.5xD
Flute length (mm)28.00
Flute typeRegular Spiral
Number of flutes2
Overall length2.5984
Point typeWeb-Thinned
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.2165
Shank length1.4961
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialHSS
Tool performanceHigh Performance
Web configurationParallel
Web thinningWeb-Thinned
