9/32" Cobalt Screw Machine Drill Bit, 130° point - Dormer Pramet 5971666

Dormer Pramet

9/32" Cobalt Screw Machine Drill Bit, 130° point - Dormer Pramet 5971666

MFR# 5971666Series A920

$9.21List $11.81 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size9/32
Flutes2

Description

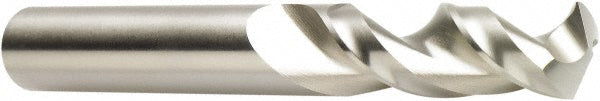

The Dormer Pramet 5971666 is a 9/32" Cobalt Screw Machine drill bit, 130° point. Suited for steel, stainless steel, aluminum & non-ferrous, high-temp alloy, hardened materials. Series A920.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0 to -22 m
Drill bit gradeHigh Performance
Drill bit size in9/32
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length (mm)38.00
Flute typeParabolic
Number of flutes2
Overall length2.6772
Point typeSelf Centering
Primary workpiece materialSteel; Stainless Steel; Aluminum & Non-Ferrous; High-Temp Alloy; Hardened Materials
Shank diameter0.2812
Shank length1.1811
Shank typeStraight
Specification designationANSI; DIN
Spiral typeFast
StandardsANSI; DIN
Tool materialCobalt
Tool performanceHigh Performance
Web configurationParallel
Web thinningWeb-Thinned
