0.1969" Cobalt Screw Machine Drill Bit, 130° point - Dormer Pramet 5972317

Dormer Pramet

0.1969" Cobalt Screw Machine Drill Bit, 130° point - Dormer Pramet 5972317

MFR# 5972317Series A920

$8.67List $11.11 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

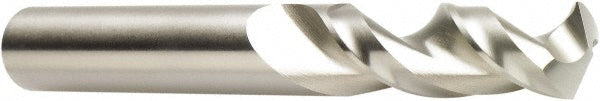

The Dormer Pramet 5972317 is a 0.1969" Cobalt Screw Machine drill bit, 130° point. Suited for steel, stainless steel, aluminum & non-ferrous, high-temp alloy, hardened materials. Series A920.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0 to -18 m
Drill bit gradeHigh Performance
Drill bit size0.1969
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length (mm)26.00
Flute typeParabolic
Number of flutes2
Overall length2.4409
Point typeSelf Centering
Primary workpiece materialSteel; Stainless Steel; Aluminum & Non-Ferrous; High-Temp Alloy; Hardened Materials
Shank diameter0.1969
Shank length1.4173
Shank typeStraight
Specification designationANSI; DIN
Spiral typeFast
StandardsANSI; DIN
Tool materialCobalt
Tool performanceHigh Performance
Web configurationParallel
Web thinningWeb-Thinned
