Dormer Pramet

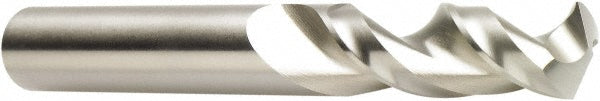

1/16" Cobalt Screw Machine Drill Bit, 130° point - Dormer Pramet 5972536
MFR# 5972536Series A920
$5.55List $7.11
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/16
Flutes2
Description
The Dormer Pramet 5972536 is a 1/16" Cobalt Screw Machine drill bit, 130° point. Suited for steel, stainless steel, aluminum & non-ferrous, high-temp alloy, hardened materials. Series A920.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0 to -14 m
Drill bit gradeHigh Performance
Drill bit size in1/16
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio3xD
Flute length (mm)16.00
Flute typeParabolic
Number of flutes2
Overall length1.6142
Point typeSelf Centering
Primary workpiece materialSteel; Stainless Steel; Aluminum & Non-Ferrous; High-Temp Alloy; Hardened Materials
Shank diameter0.0625
Shank length0.9843
Shank typeStraight
Specification designationANSI; DIN
Spiral typeFast
StandardsANSI; DIN
Tool materialCobalt
Tool performanceHigh Performance
Web configurationParallel
Web thinningWeb-Thinned
