Dormer Pramet

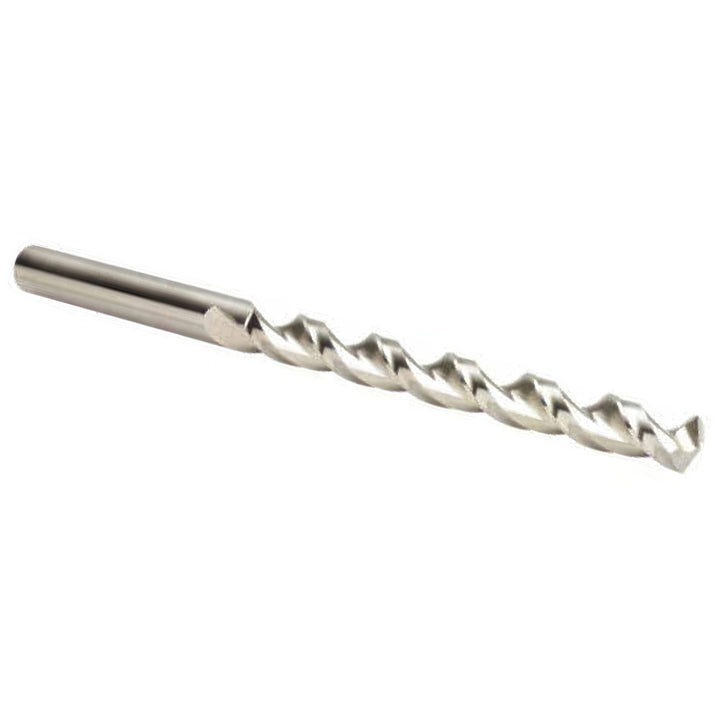

1/16" HSS-E Cobalt Drill Bit, 130° point - Dormer Pramet 5972905
MFR# 5972905Series A940
$13.59List $17.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/16
Description
The Dormer Pramet 5972905 is a 1/16" HSS-E Cobalt drill bit, 130° point. Series A940.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHigh Performance
Drill bit size in1/16
Drill point angle degrees130
Flute length (mm)44.00
Flute length x diameter ratio10xD
Flute typeSpiral
Material applicationAlloy Steel; Aluminum; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Graphite; Hardened Steel; High-Strength Bronze; Magnesium; Magnesium Alloy; Malleable Iron; Stainless Steel; Steel; Tempered Steel; Thermoplastic; Thermosetting Plastic
Material gradeM42
Overall length (mm)76
Point typeSpecial
Shank diameter in1/16
Shank length (mm)32.00
Shank typeStraight-Cylindrical
Spiral typeFast
StandardsDIN ANSI
Threaded shankNo
Tool materialHSS-E Cobalt
Tool performanceHigh Performance
Web configurationParallel
Web thinningWeb-Thinned
