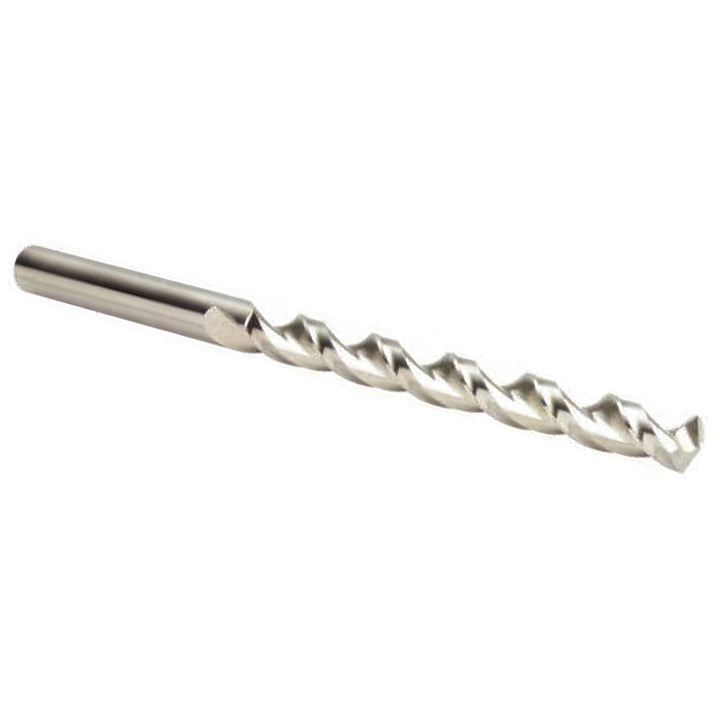

17/64" HSS-E Cobalt Drill Bit, 130° point - Dormer Pramet 5973080

Dormer Pramet

17/64" HSS-E Cobalt Drill Bit, 130° point - Dormer Pramet 5973080

MFR# 5973080Series A940

$19.12List $24.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size17/64

Description

The Dormer Pramet 5973080 is a 17/64" HSS-E Cobalt drill bit, 130° point. Series A940.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHigh Performance
Drill bit size in17/64
Drill point angle degrees130
Flute length (mm)98.00
Flute typeSpiral
Material applicationAlloy Steel; Aluminum; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Graphite; Hardened Steel; High-Strength Bronze; Magnesium; Magnesium Alloy; Malleable Iron; Stainless Steel; Steel; Tempered Steel; Thermoplastic; Thermosetting Plastic
Material gradeM42
Overall length (mm)159
Point typeSpecial
Shank diameter0.2656
Shank typeStraight-Cylindrical
Spiral typeFast
Tool materialHSS-E Cobalt
Web configurationParallel
Web thinningWeb-Thinned
