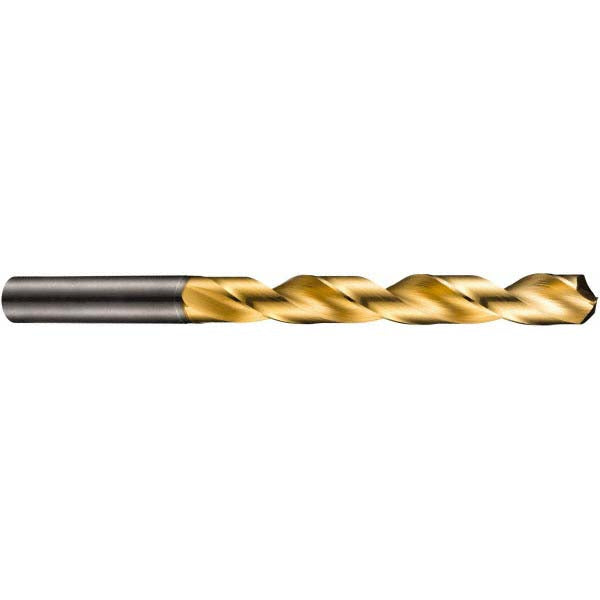

0.1181" Solid Carbide Drill Bit, TiN, 130° point - Dormer Pramet 5980504

Dormer Pramet

0.1181" Solid Carbide Drill Bit, TiN, 130° point - Dormer Pramet 5980504

MFR# 5980504Series R510

$80.82
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The Dormer Pramet 5980504 is a 0.1181" Solid Carbide drill bit with a TiN finish, 130° point. Suited for aluminum & non-ferrous, composites. Series R510.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0.000 to -0.010 mm
Drill bit materialSolid Carbide
Drill bit size0.1181
Drill bit size range0.1000 - 0.1500
Drill point angle degrees130
Flute by diameter ratio4xD
Flute length1.3002
Flute typeRegular Spiral
Number of flutes2
Overall length2.4034
Point typeStandard
Primary workpiece materialAluminum & Non-Ferrous; Composites
Shank diameter0.1181
Shank length (mm)28
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool applicationSelf-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
