Dormer Pramet

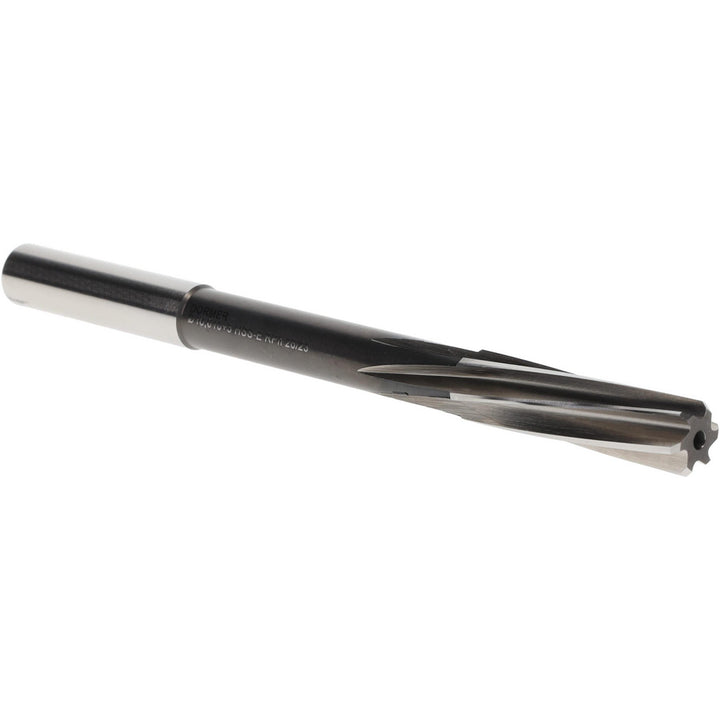

0.3944" Cobalt Steel Reamer - Dormer Pramet 5986244
MFR# 5986244Series B170
$94.34List $121.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Dormer Pramet 5986244 is a 0.3944 Cobalt Steel reamer.
Specifications
Additional informationCentesimal Reamer with Left Hand Slow Spiral Flutes & a Cylindrical Shank; Diameter 10.01mm with an Overall Length of 133mm; A Flute Length of 38mm & 87mm Reach with Neck Relief; According to DIN 212 Standard with a Diameter Tolerance of 0/+0.005Mm to Pro
Coolant throughNo
Cutting directionRight Hand
Dowel pin reamerNo
Flute length (mm)38.00
Flute typeSpiral
Number of flutes6
Overall length5.2402
Over under size reamerNo
Reamer diameter0.3944
Reamer diameter range0.3500 - 0.3999
Reamer diameter tolerance0.000 to +0.005 mm
Shank diameter (mm)10.00
Shank typeStraight-Cylindrical
Spiral directionLeft Hand
Tool materialCobalt Steel
