0.6304" Cobalt Steel Reamer - Dormer Pramet 5986634

Dormer Pramet

0.6304" Cobalt Steel Reamer - Dormer Pramet 5986634

MFR# 5986634Series B180

$122.22List $156.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes8

Description

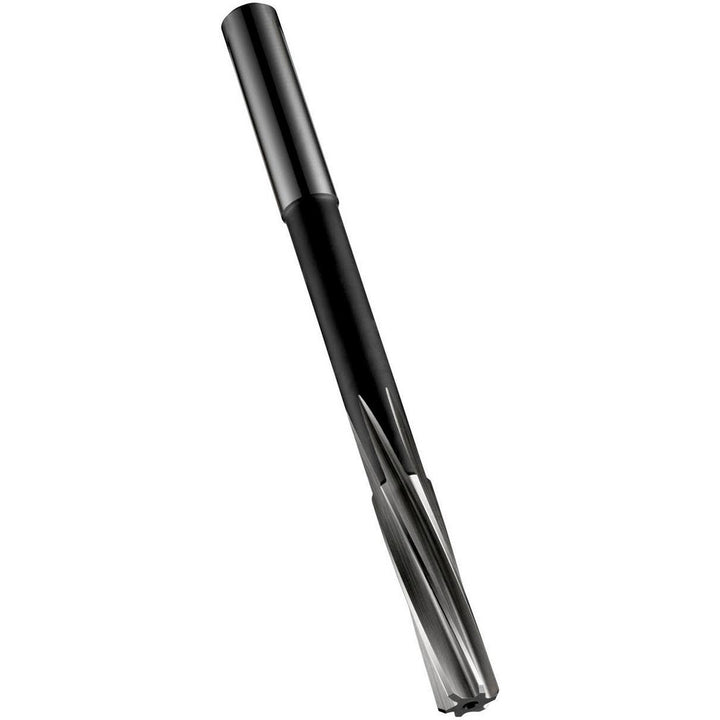

The Dormer Pramet 5986634 is a 0.6304 Cobalt Steel reamer.

Specifications

Additional informationMachine Reamer with Left Hand Slow Spiral Flutes & a Cylindrical Shank; Diameter 16.00mm with an Overall Length of 170mm; A Flute Length of 52mm & 120mm Reach with Neck Relief; According to DIN 212 Standard For Reaming Precise Holes Within H7 Tolerance; C
Coolant throughNo
Cutting directionRight Hand
Dowel pin reamerNo
Flute length (mm)52.00
Flute typeSpiral
Number of flutes8
Overall length6.6980
Over under size reamerNo
Reamer diameter0.6304
Reamer diameter range0.5000 - 0.6999
Reamer diameter tolerance+0.018 to 0.000 mm
Shank diameter (mm)14.00
Shank typeStraight-Cylindrical
Spiral directionLeft Hand
Tool materialCobalt Steel
