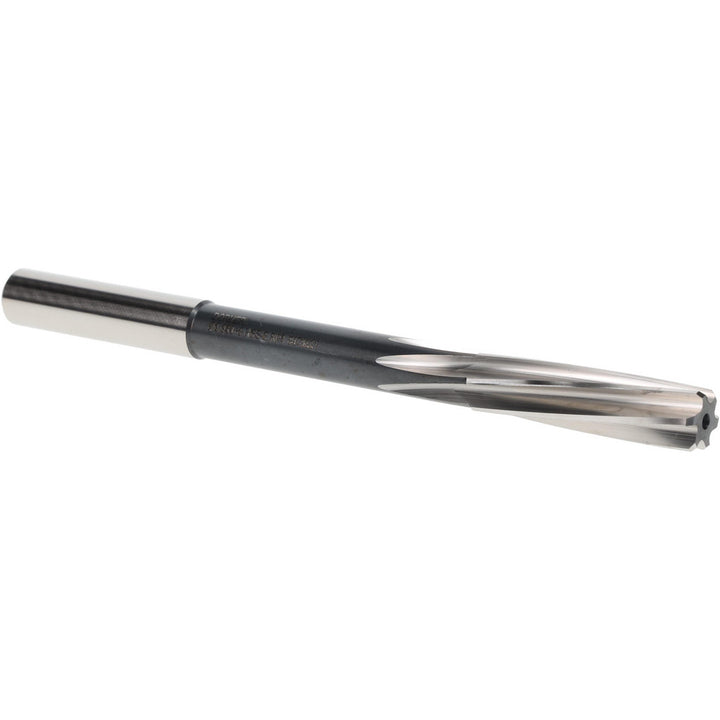

0.3932" Cobalt Steel Reamer - Dormer Pramet 5986671

Dormer Pramet

0.3932" Cobalt Steel Reamer - Dormer Pramet 5986671

MFR# 5986671Series B170

$94.34List $121.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6

Description

The Dormer Pramet 5986671 is a 0.3932 Cobalt Steel reamer.

Specifications

Additional informationCentesimal Reamer with Left Hand Slow Spiral Flutes & a Cylindrical Shank; Diameter 9.98mm with an Overall Length of 133mm; A Flute Length of 38mm & 87mm Reach with Neck Relief; According to DIN 212 Standard with a Diameter Tolerance of 0/+0.005Mm to Prod
Coolant throughNo
Cutting directionRight Hand
Dowel pin reamerNo
Flute length (mm)38.00
Flute typeSpiral
Number of flutes6
Overall length5.2402
Over under size reamerNo
Reamer diameter0.3932
Reamer diameter range0.3500 - 0.3999
Reamer diameter tolerance0.000 to +0.005 mm
Shank diameter (mm)10.00
Shank typeStraight-Cylindrical
Spiral directionLeft Hand
Tool materialCobalt Steel
