Dormer Pramet
Carbide Insert, TiAlN - Dormer Pramet 5988612
MFR# 5988612Series R960
$108.74List $132.00
Save 17%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description

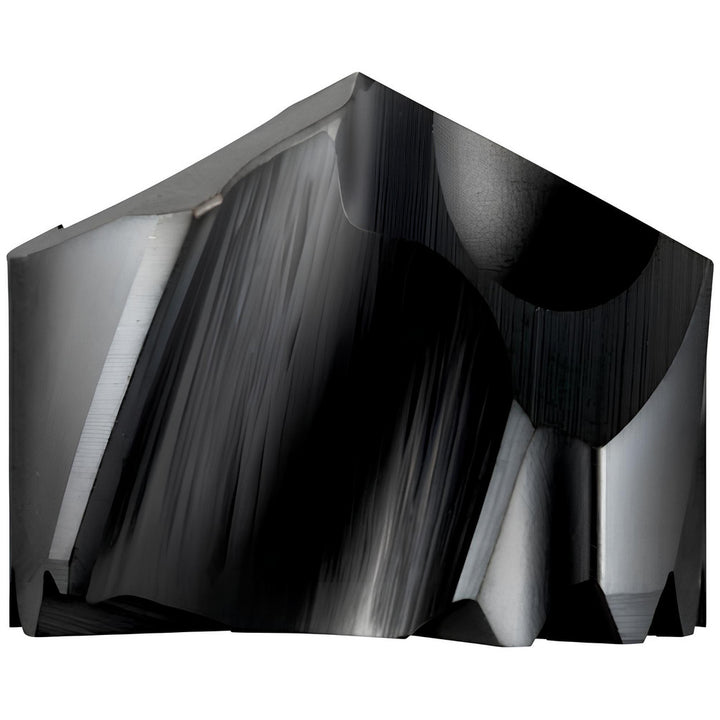

The Dormer Pramet 5988612 is a carbide indexable insert, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
ApplicationsHigh-performance replaceable drill head HYDRA M; diameter 0.6250" (5/8) according to DORMER standard with 140 modified 4-facet split point; solid carbide with Ti-phon coating for drilling stainless steel in combination with HYDRA body size 41/64" or 16mm
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter in5/8
Drill point angle140
Flute length (mm)7.00
Flute typeHelical
Functional length0.2591
Height0.457
Included angle degree140
Insert holding methodClamp
Iso numberR9605/8
Material gradeP1; P2; M1; M4; K1; K4; S1; S4
Number of flutes2
Overall length projection0.2591
Point typeFour Facet Point
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Spiral typeRegular Spiral
StandardsANSI
StyleR960
Tip materialSolid Carbide
