Dormer Pramet

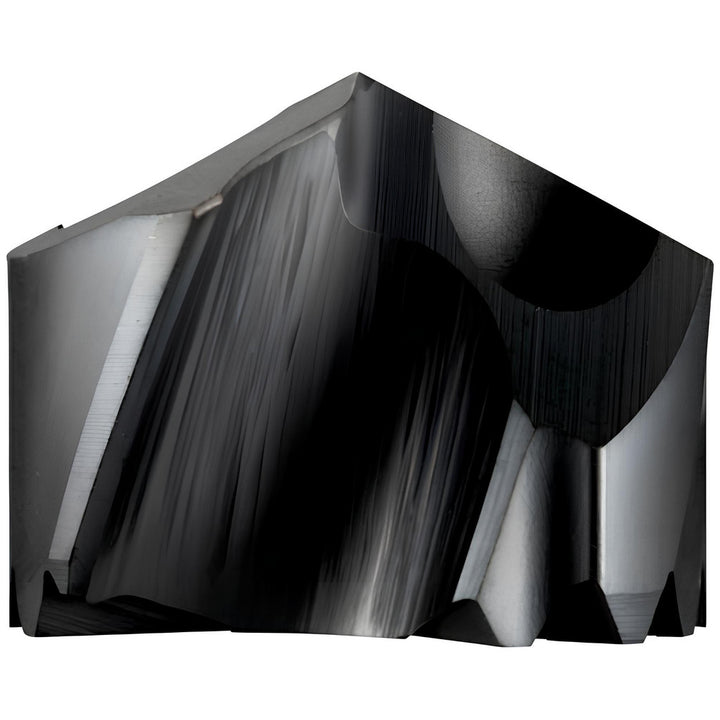

Carbide Insert, TiAlN - Dormer Pramet 5988623
MFR# 5988623Series R950
$106.04List $136.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Dormer Pramet 5988623 is a carbide indexable insert, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsHigh-performance replaceable drill head HYDRA P; diameter 0.6875" (11/16) according to DORMER standard with 140 modified 4-facet split point; solid carbide with Ti-phon coating for drilling steel in combination with HYDRA body size 11/16" or 17mm; H853 f
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter in11/16
Drill point angle140
Flute length (mm)7.00
Flute typeHelical
Functional length0.2630
Height0.4807
Included angle degree140
Insert holding methodClamp
Iso numberR95011/16
Material gradeP1; P4; K2; K5
Number of flutes2
Overall length projection0.2630
Point typeFour Facet Point
Primary workpiece materialSteel; Cast Iron
Spiral typeRegular Spiral
StandardsANSI
StyleR950
Tip materialSolid Carbide
