Dormer Pramet

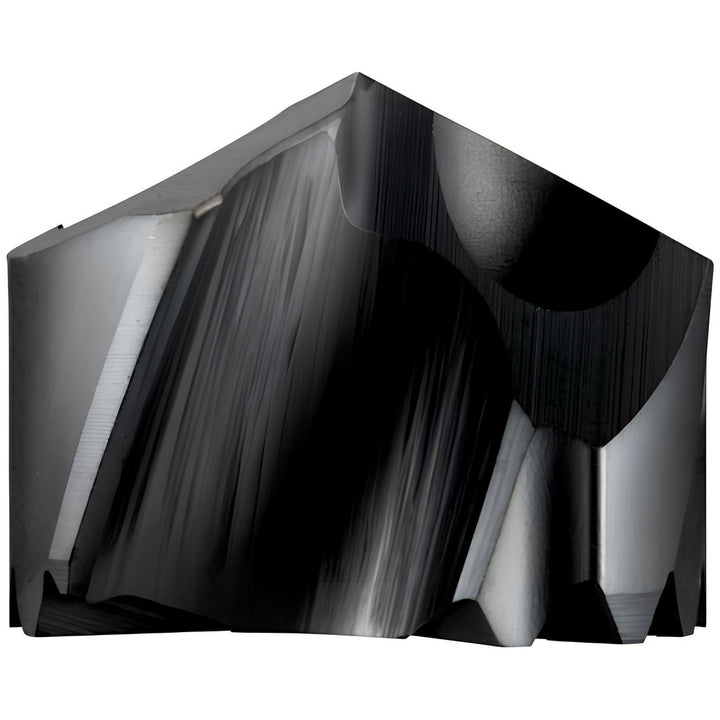

Carbide Insert, TiAlN - Dormer Pramet 5988661
MFR# 5988661Series R960
$123.97List $159.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Dormer Pramet 5988661 is a carbide indexable insert, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
ApplicationsHigh-performance replaceable drill head HYDRA M; diameter 0.8750" (7/8) according to DORMER standard with 140 modified 4-facet split point; solid carbide with Ti-phon coating for drilling stainless steel in combination with HYDRA body size 57/64" or 22mm
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter in7/8
Drill point angle140
Flute length (mm)8.00
Flute typeHelical
Functional length0.3139
Height0.591
Included angle degree140
Insert holding methodClamp
Iso numberR9607/8
Material gradeP1; P2; M1; M4; K1; K4; S1; S4
Number of flutes2
Overall length projection0.3139
Point typeFour Facet Point
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Spiral typeRegular Spiral
StandardsANSI
StyleR960
Tip materialSolid Carbide
