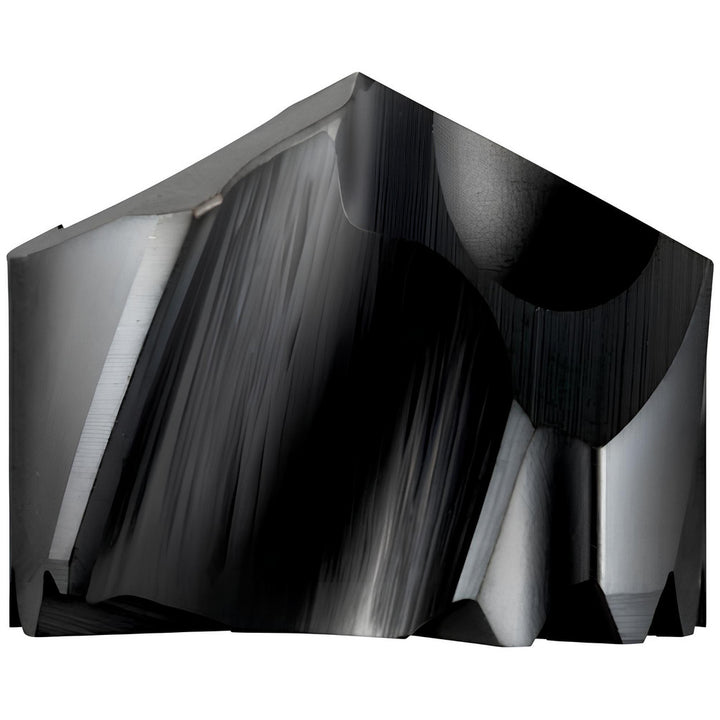

Carbide Insert, TiAlN - Dormer Pramet 5988857

Dormer Pramet

Carbide Insert, TiAlN - Dormer Pramet 5988857

MFR# 5988857Series R950

$105.01List $128.00 Save 17%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiAlN

Description

The Dormer Pramet 5988857 is a carbide indexable insert, TiAlN coated. Suited for steel, cast iron.

Specifications

ApplicationsHigh-performance replaceable drill head HYDRA P; diameter 0.5781" (37/64) according to DORMER standard with 140 modified 4-facet split point; solid carbide with Ti-phon coating for drilling steel in combination with HYDRA body size 39/64" or 15mm; H853 f
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter in37/64
Drill point angle140
Flute length (mm)6.00
Flute typeHelical
Functional length0.2503
Height in1/4
Included angle degree140
Insert holding methodClamp
Iso numberR95037/64
Material gradeP1; P4; K2; K5
Number of flutes2
Overall length projection0.2503
Point typeFour Facet Point
Primary workpiece materialSteel; Cast Iron
Spiral typeRegular Spiral
StandardsANSI
StyleR950
Tip materialSolid Carbide
