Emuge

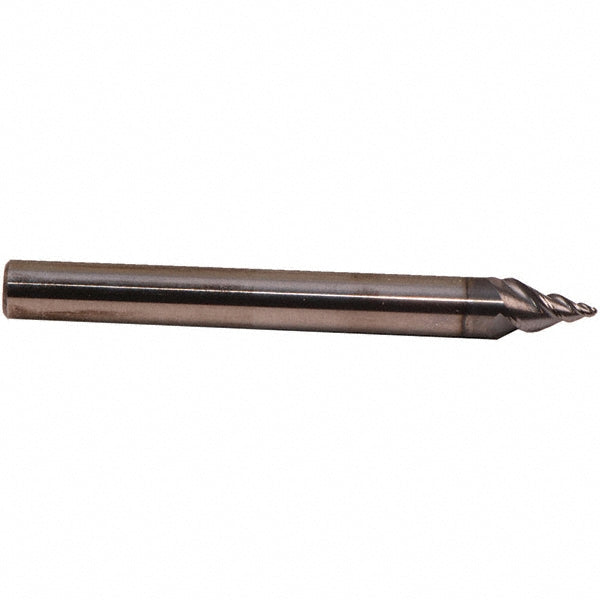

3-Flute Solid Carbide Tapered End Mill, AlCr - Emuge 3440L.17505A
MFR# 3440L.17505ASeries 3440L
$162.72List $208.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingAlCr
Description
The Emuge 3440L.17505A is a 3-flute Solid Carbide tapered end mill with a AlCr finish for longer tool life. Series 3440L.
Specifications
Coating finishAlCr
Coolant throughNo
End mill materialSolid Carbide
End shapeBall
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut (mm)8.00
Mill diameter (mm)3.26
Nose radius (mm)0.50
Number of flutes3
Overall length (mm)57.00
Shank diameter (mm)6.00
Shank diameter toleranceh6
Small end diameter (mm)3.26
Taper angle per side17.50
