Emuge

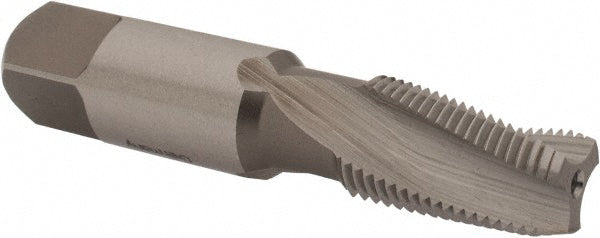

1/8-27 NPTF High Speed Steel Tap - Emuge AW483000.5783
MFR# AW483000.5783Series KEG
$82.42List $98.04
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/8-27
Description
The Emuge AW483000.5783 is a 1/8-27 NPTF High Speed Steel tap. 3 flutes.
Specifications
ApplicationBlind & Through-Hole Threading
ChamferModified Bottoming
Flute directionRight Hand
Helix angle15
MaterialHigh Speed Steel
Material applicationElectrolytic Copper; Hastelloys; Inconel; Renes; Stainless Steel; Steel; Tool Steel; Waspalloys
Number of flutes3
Overall length in2-1/8
Projection0.2500 to 0.3750
Shank diameter0.4375
Square size0.3280
Threads per inch27.0
Thread length in3/4
Thread size in1/8-27
Thread standardNPTF
