Emuge

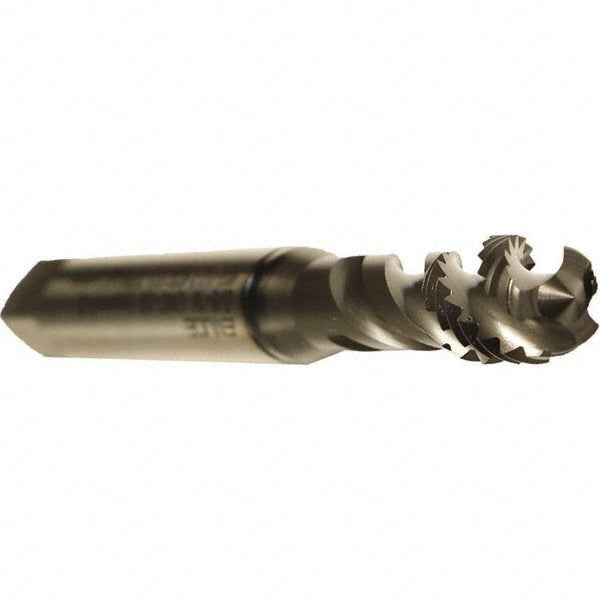

M5 x 0.80 Metric Cobalt Tap, GLT-1 - Emuge B050C400.0050
MFR# B050C400.0050Series Enorm
$61.51List $73.16
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingGLT-1
Description
The Emuge B050C400.0050 is a Metric Cobalt tap with a GLT-1 finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishGLT-1
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAluminum Alloy; Copper; Copper Alloy; Stainless Steel; Steel
Number of flutes3
Overall length2.7559
OversizeNo
Shank diameter0.2362
Shank length1.7717
Square size (mm)4.90
Tapping depth0.9843
Thread directionRight Hand
Thread length0.3150
Thread pitch (mm)0.80
Thread size (mm)M5 x 0.80
Thread standardMetric
