Emuge

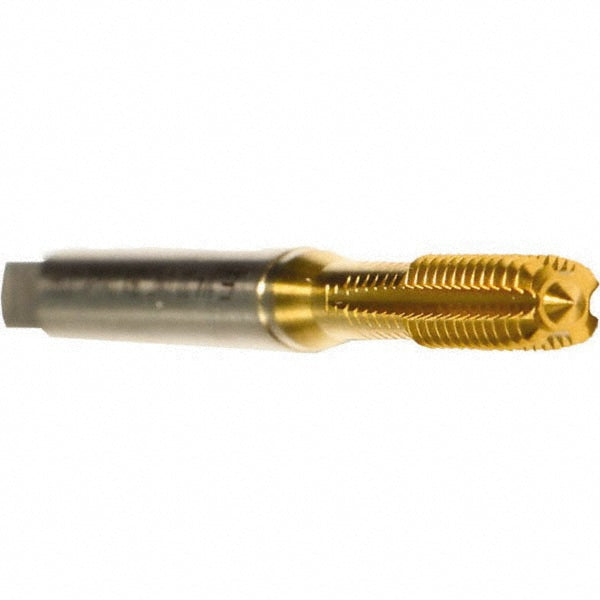

M6x1 Metric High-Speed Steel-E Tap, TiN - Emuge B0921400.0060
MFR# B0921400.0060Series B0921400
$62.46List $74.29
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Emuge B0921400.0060 is a Metric High-Speed Steel-E tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit6HX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E
Material applicationSteel; Stainless Steel; Non-Ferrous Metal
Material application codeP; M; N
Overall length3.1496
Shank diameter0.2362
Square size0.1929
Tapping depth1.1811
Thread directionRight Hand
Thread length0.6693
Thread size (mm)M6x1
Thread standardMetric
Trade nameDruck 1-STEEL-SN-TiN
