Emuge

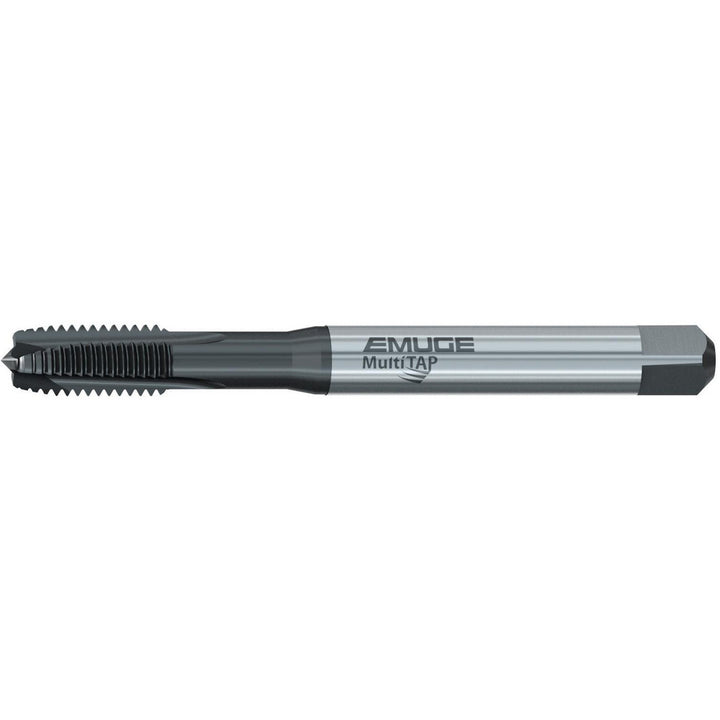

M10x1.5 Metric HSS-E Spiral Point Tap, NT2 - Emuge B1577300.0100
MFR# B1577300.0100Series B1577300
$29.81List $35.46
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingNT2
Description
The Emuge B1577300.0100 is a Metric HSS-E Spiral Point tap with a NT2 finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit6H
Coating finishNT2
Coolant throughNo
Interrupted threadNo
MaterialHSS-E
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Neck length (mm)17.00
Number of flutes3
Overall length (mm)100
OversizeNo
Shank diameter (mm)10.00
Square size (mm)8.00
StyleSpiral Point
Threads per inch16.93
Thread directionRight Hand
Thread length (mm)22.00
Thread pitch (mm)1.5
Thread size (mm)M10x1.5
Thread standardMetric
