Emuge

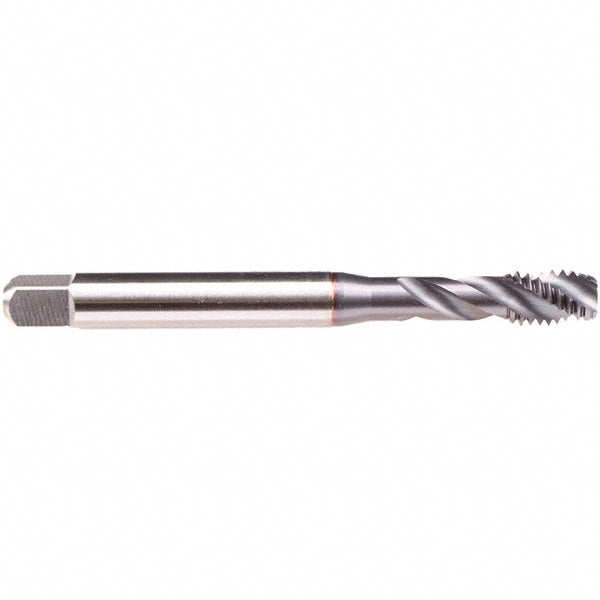

M4x0.7 Metric High-Speed Steel Tap, TiCN - Emuge B4939300.0040
MFR# B4939300.0040Series B4939300
$28.97List $34.46
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description
The Emuge B4939300.0040 is a Metric High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle35
MaterialHigh-Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Copper; Stainless Steel
Number of flutes3
Overall length (mm)63.00
OversizeNo
Shank diameter (mm)4.50
Square size (mm)3.40
Tapping depth (mm)21.00
Thread directionRight Hand
Thread length (mm)13.00
Thread pitch (mm)0.70
Thread size (mm)M4x0.7
Thread standardMetric
