Emuge
M8x1.25 Metric Cobalt Tap, TiCN - Emuge B4939300.0080
MFR# B4939300.0080Series B4939300
$40.34List $47.99
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description

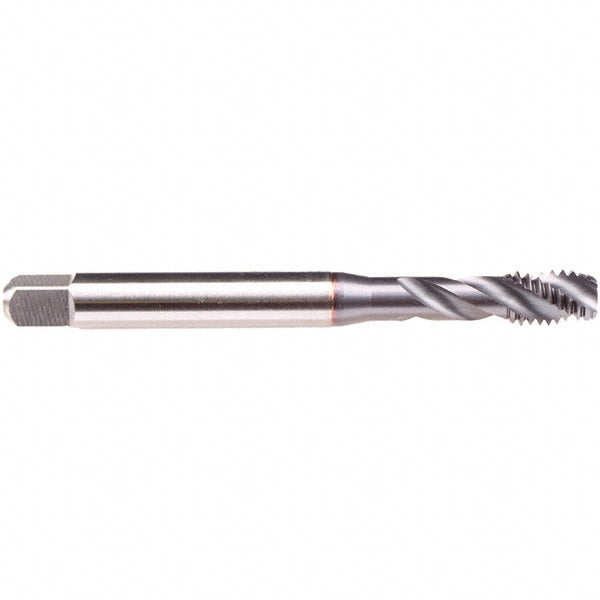

The Emuge B4939300.0080 is a Metric Cobalt tap with a TiCN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle35
MaterialCobalt
Material applicationAlloy Steel; Aluminum; Carbon Steel; Copper; Stainless Steel
Number of flutes3
Overall length (mm)90.00
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Aluminum & Non-Ferrous
Shank diameter (mm)8.00
Square size (mm)6.20
Tapping depth (mm)35.00
Thread directionRight Hand
Thread length (mm)20.00
Thread pitch (mm)1.25
Thread size (mm)M8x1.25
Thread standardMetric
