Emuge

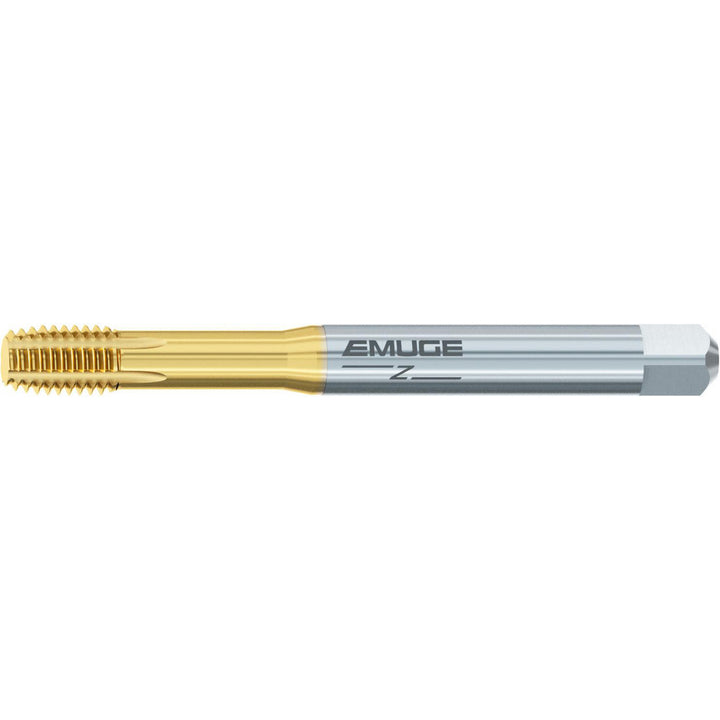

M4x0.7 Metric High-Speed Steel-E-PM Tap, TiN-80 - Emuge B529Z700.0040
MFR# B529Z700.0040Series B529Z700
$94.95List $112.95
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN-80
Description
The Emuge B529Z700.0040 is a Metric High-Speed Steel-E-PM tap with a TiN-80 finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit6HX
Coating finishTiN-80
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-PM
Material applicationSteel; Stainless Steel
Material application codeP; M
Overall length2.4803
Shank diameter0.1772
Square size0.1339
Tapping depth0.8268
Thread directionRight Hand
Thread length0.2756
Thread limitD4
Thread size (mm)M4x0.7
Thread standardMetric
Trade nameInnoForm-Z/E-SN--PM-TiN-80
