Emuge

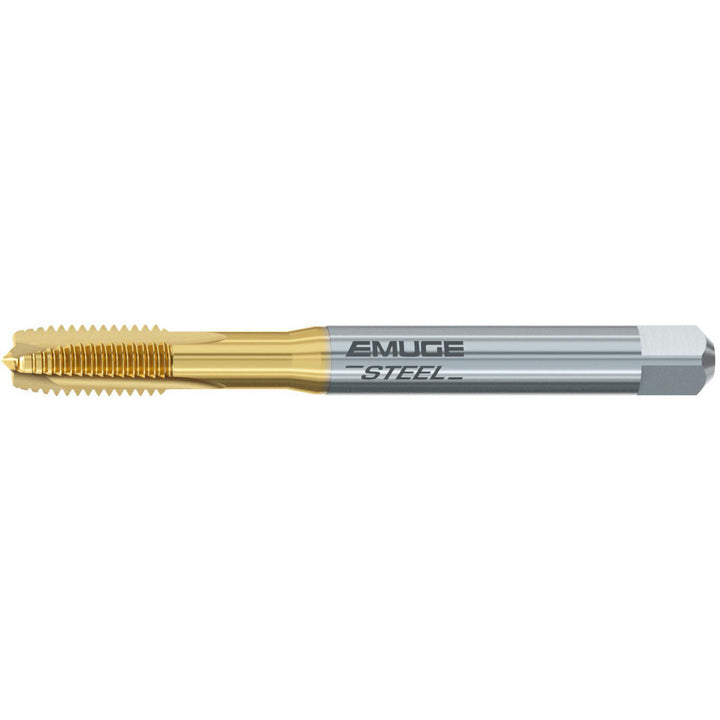

5/16-18 UNC HSS-E Cobalt Spiral Point Tap, TiN - Emuge BU208400.5010
MFR# BU208400.5010Series BU208400
$54.15List $64.41
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingTiN
Description
The Emuge BU208400.5010 is a 5/16-18 UNC HSS-E Cobalt Spiral Point tap with a TiN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Cobalt
Material applicationSteel; Cast Iron; Non-Ferrous Metal
Neck length1.3780
Number of flutes3
Overall length3.5433
OversizeNo
Shank diameter0.3180
Square size (mm)6.05
StyleSpiral Point
Threads per inch18
Thread directionRight Hand
Thread length (mm)20.00
Thread limitH5
Thread pitch0.0556
Thread size in5/16-18
Thread standardUNC
