Emuge
3/8-16 UNC HSS-E Cobalt Spiral Point Tap, TiN - Emuge BU208400.5011
MFR# BU208400.5011Series BU208400
$59.77List $71.09
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingTiN
Description

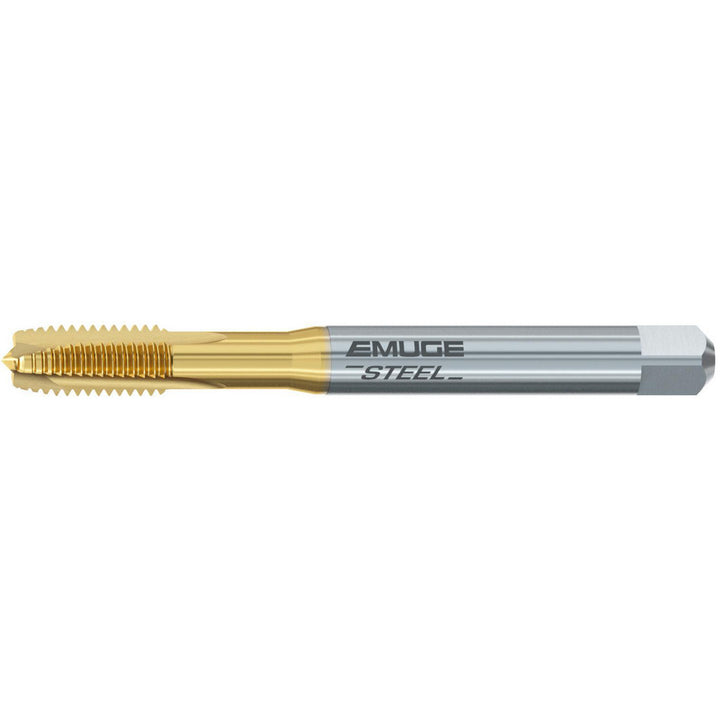

The Emuge BU208400.5011 is a 3/8-16 UNC HSS-E Cobalt Spiral Point tap with a TiN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Cobalt
Material applicationSteel; Cast Iron; Non-Ferrous Metal
Neck length1.5354
Number of flutes3
Overall length3.9370
OversizeNo
Shank diameter0.3810
Square size (mm)7.26
StyleSpiral Point
Threads per inch16
Thread directionRight Hand
Thread length0.8660
Thread limitH5
Thread pitch0.0625
Thread size in3/8-16
Thread standardUNC
