Emuge

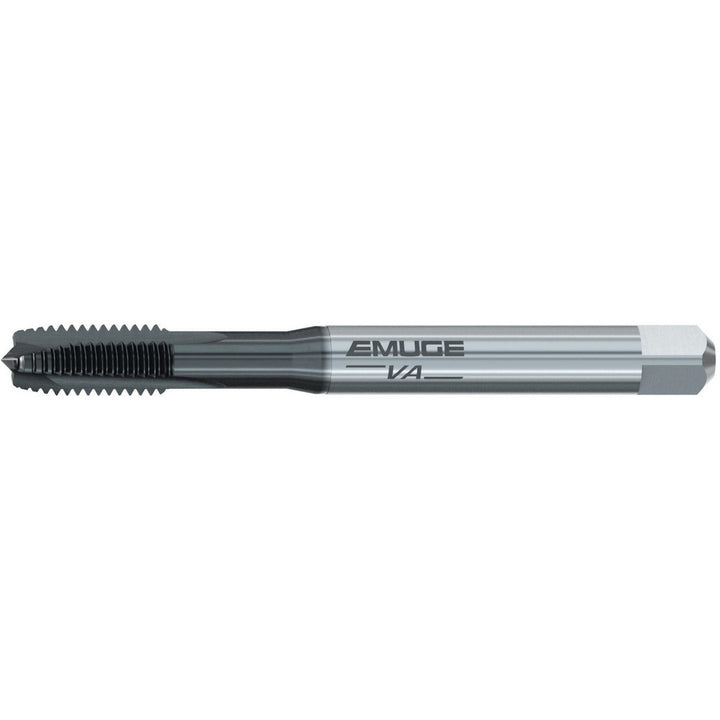

1/4-20 UNC HSS-E Cobalt Spiral Point Tap, GLT-1 - Emuge BU20C300.5009
MFR# BU20C300.5009Series BU20C300
$57.90List $68.87
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingGLT-1
Description
The Emuge BU20C300.5009 is a 1/4-20 UNC HSS-E Cobalt Spiral Point tap with a GLT-1 finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishGLT-1
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Cobalt
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Neck length1.1811
Number of flutes3
Overall length3.1496
OversizeNo
Shank diameter0.2550
Square size (mm)4.85
StyleSpiral Point
Threads per inch20
Thread directionRight Hand
Thread length0.6690
Thread limitH5
Thread pitch0.05
Thread size in1/4-20
Thread standardUNC
