Emuge
#0-80 UNF HSS-E Cobalt Spiral Point Tap, GLT-1 - Emuge BU20C300.5033
MFR# BU20C300.5033Series BU20C300
$75.87List $90.24
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#0-80
CoatingGLT-1
Description

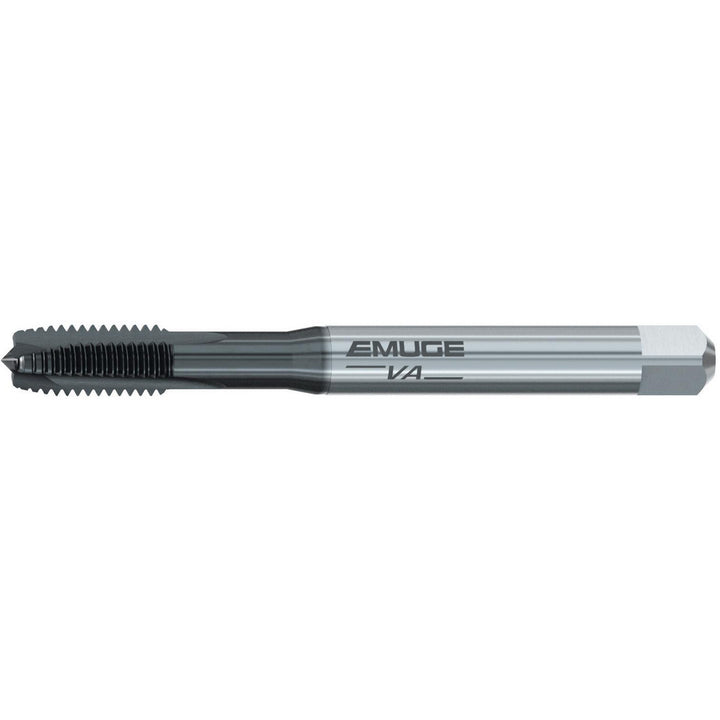

The Emuge BU20C300.5033 is a #0-80 UNF HSS-E Cobalt Spiral Point tap with a GLT-1 finish. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishGLT-1
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Cobalt
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Neck length0.4331
Number of flutes2
Overall length1.6260
OversizeNo
Shank diameter0.1410
Square size (mm)2.79
StyleSpiral Point
Threads per inch80
Thread directionRight Hand
Thread length (mm)6.00
Thread limitH2
Thread pitch0.0125
Thread size in#0-80
Thread standardUNF
