Emuge
#10-32 UNF HSS-E Cobalt Spiral Point Tap, GLT-1 - Emuge BU20C310.5041
MFR# BU20C310.5041Series BU20C310
$43.29List $51.49
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-32
CoatingGLT-1
Description

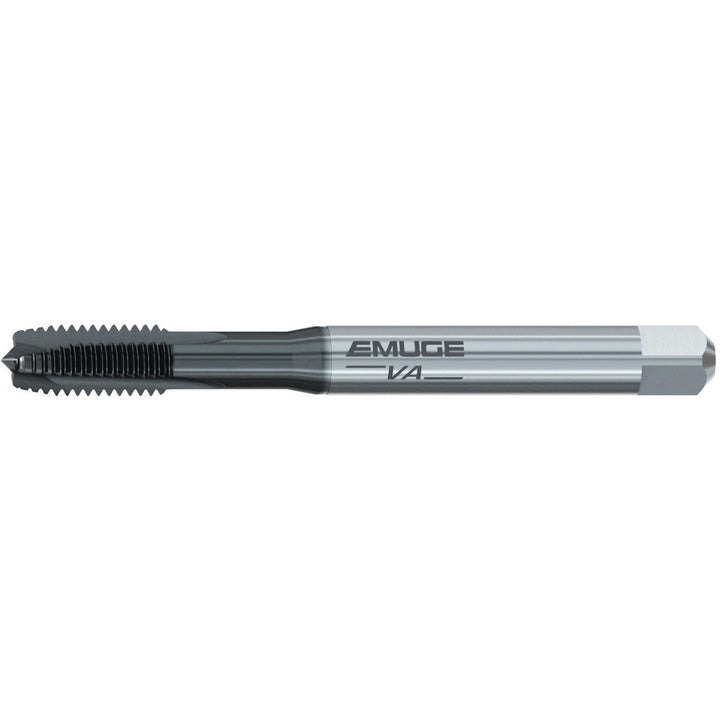

The Emuge BU20C310.5041 is a #10-32 UNF HSS-E Cobalt Spiral Point tap with a GLT-1 finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coating finishGLT-1
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Cobalt
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Neck length0.9843
Number of flutes3
Overall length2.7559
OversizeNo
Shank diameter0.1940
Square size (mm)3.86
StyleSpiral Point
Threads per inch32
Thread directionRight Hand
Thread length (mm)13.00
Thread limitH2
Thread pitch0.0313
Thread size in#10-32
Thread standardUNF
