Emuge

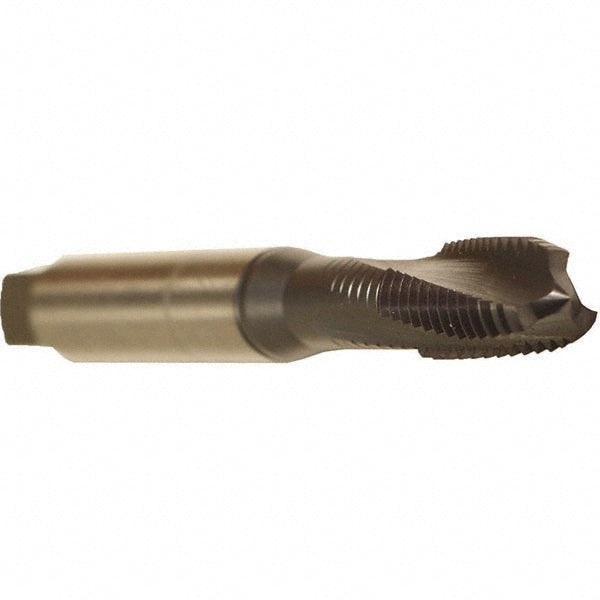

5/16-18 UNC Cobalt Tap, TiCN - Emuge BU35J411.5010
MFR# BU35J411.5010Series Rekord DF
$89.32List $106.24
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingTiCN
Description
The Emuge BU35J411.5010 is a 5/16-18 UNC Cobalt tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3BX
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSlow
Helix angle10
MaterialCobalt
Material applicationCobalt Alloy; Iron Alloy; Nickel Alloy
Neck length0.5910
Number of flutes3
Overall length3.5430
OversizeNo
Shank diameter0.3180
Shank length2.1650
Tapping depth1.3780
Thread directionRight Hand
Thread length0.7870
Thread size in5/16-18
Thread standardUNC
