Emuge

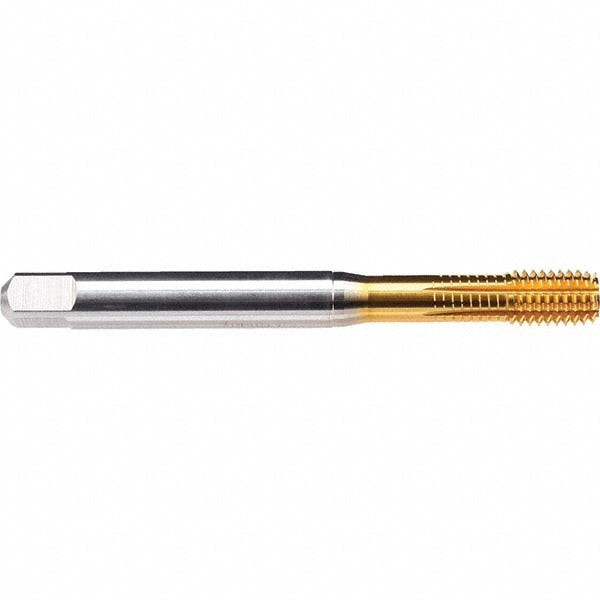

#10-32 UNF High-Speed Steel-E-PM Tap, TiN-80 - Emuge BU39Z700.5041
MFR# BU39Z700.5041Series BU39Z700
$62.65List $74.51
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#10-32
CoatingTiN-80
Description
The Emuge BU39Z700.5041 is a #10-32 UNF High-Speed Steel-E-PM tap with a TiN-80 finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit2BX
Coating finishTiN-80
Coolant throughNo
MaterialHigh-Speed Steel-E-PM
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloy
Material application codeP; M; K; N; S
Overall length2.7559
Shank diameter0.1940
Square size0.1520
Tapping depth0.9843
Thread directionRight Hand
Thread length0.3937
Thread limitH3
Thread size in#10-32
Thread standardUNF
Trade nameInnoForm 1-Z/E-SN-PM-TiN-80
