Emuge
#10-24 UNC Cobalt Tap, Oxide - Emuge BU456001.5007
MFR# BU456001.5007Series Rekord D-Ti
$47.34List $56.31
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-24
CoatingOxide
Description

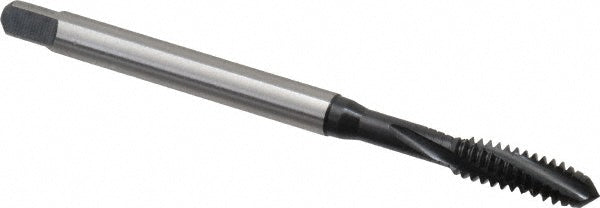

The Emuge BU456001.5007 is a #10-24 UNC Cobalt tap with a Oxide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2BX
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleSlow
Helix angle15
MaterialCobalt
Material applicationTitanium
Number of flutes3
Overall length2.7560
OversizeNo
Shank diameter0.1940
Square size0.1520
Tapping depth0.9840
Threads per inch24
Thread directionRight Hand
Thread length0.5910
Thread size in#10-24
Thread standardUNC
