Emuge
1/4-28 UNF Cobalt Tap, Oxide - Emuge BU456001.5043
MFR# BU456001.5043Series Rekord D-Ti
$55.99List $66.60
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-28
CoatingOxide
Description

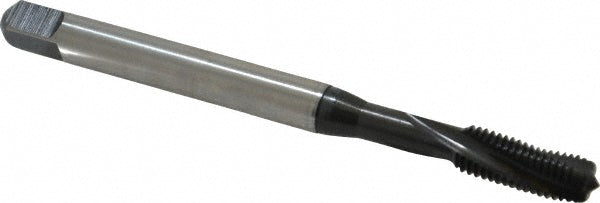

The Emuge BU456001.5043 is a 1/4-28 UNF Cobalt tap with a Oxide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2BX
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleSlow
Helix angle15
MaterialCobalt
Material applicationTitanium
Number of flutes3
Overall length3.1500
OversizeNo
Shank diameter0.2550
Square size0.1910
Tapping depth1.1810
Threads per inch28
Thread directionRight Hand
Thread length0.6690
Thread size in1/4-28
Thread standardUNF
