Emuge

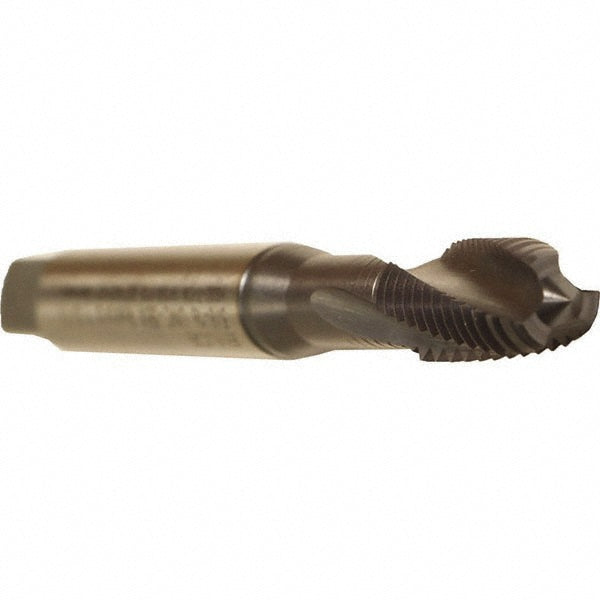

5/16-24 UNF Cobalt Tap, TiCN - Emuge BU459611.5044
MFR# BU459611.5044Series Rekord D
$72.96List $86.79
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-24
CoatingTiCN
Description
The Emuge BU459611.5044 is a 5/16-24 UNF Cobalt tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3BX
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSlow
Helix angle15
MaterialCobalt
Material applicationCast Iron; Cobalt Alloy; Copper Alloy; Nickel; Nickel Alloy; Stainless Steel; Steel; Titanium; Titanium Alloy
Number of flutes3
Overall length3.5430
OversizeNo
Shank diameter0.3180
Shank length2.2830
Tapping depth1.2600
Thread directionRight Hand
Thread length0.6690
Thread size in5/16-24
Thread standardUNF
