Emuge

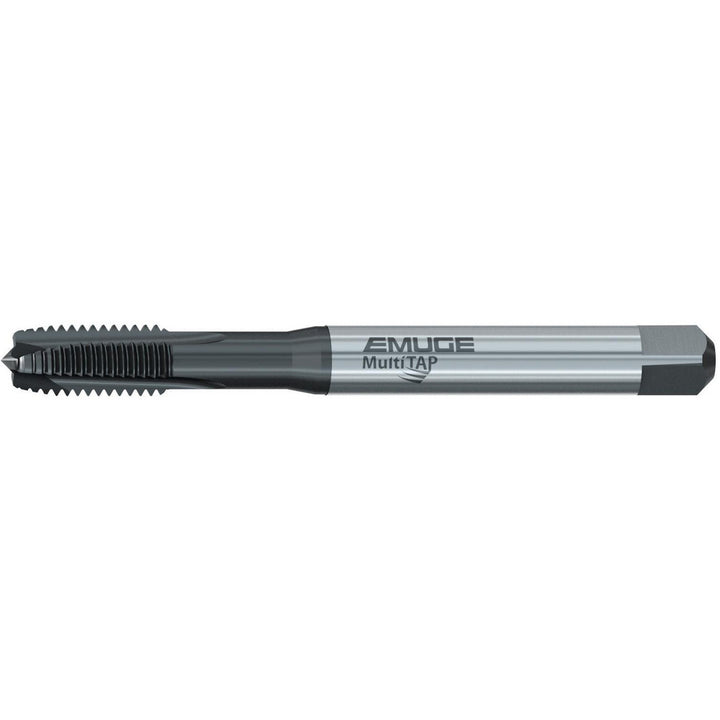

#4-40 UNC HSS-E Cobalt Spiral Point Tap, NT2 - Emuge BU497300.5003
MFR# BU497300.5003Series BU497300
$19.30List $22.96
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#4-40
CoatingNT2
Description
The Emuge BU497300.5003 is a #4-40 UNC HSS-E Cobalt Spiral Point tap with a NT2 finish. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishNT2
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Cobalt
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Neck length (mm)7.00
Number of flutes2
Overall length2.2050
OversizeNo
Shank diameter (mm)3.58
Square size (mm)2.79
StyleSpiral Point
Threads per inch40
Thread directionRight Hand
Thread length0.4330
Thread pitch0.025
Thread size in#4-40
Thread standardUNC
