Emuge

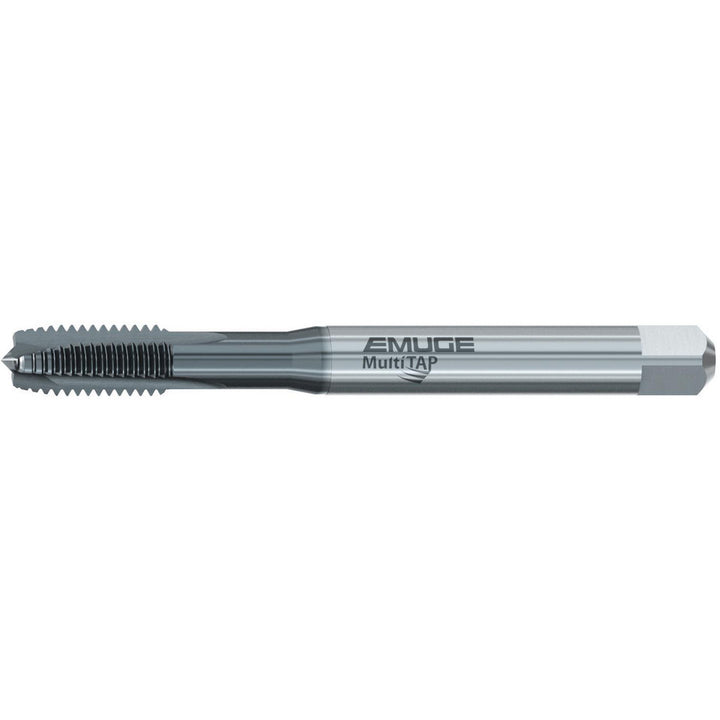

M5x0.8 Metric HSS-E Cobalt Spiral Point Tap, TiCN - Emuge BU499300.0050
MFR# BU499300.0050Series BU499300
$25.91List $30.82
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description
The Emuge BU499300.0050 is a Metric HSS-E Cobalt Spiral Point tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Cobalt
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Measurement typeMetric
Neck length (mm)10.00
Number of flutes3
Overall length (mm)70
OversizeNo
Shank diameter0.1940
Square size (mm)3.86
StyleSpiral Point
Threads per inch31.75
Thread directionRight Hand
Thread length (mm)15.00
Thread pitch (mm)0.8
Thread size (mm)M5x0.8
Thread standardMetric
