Emuge

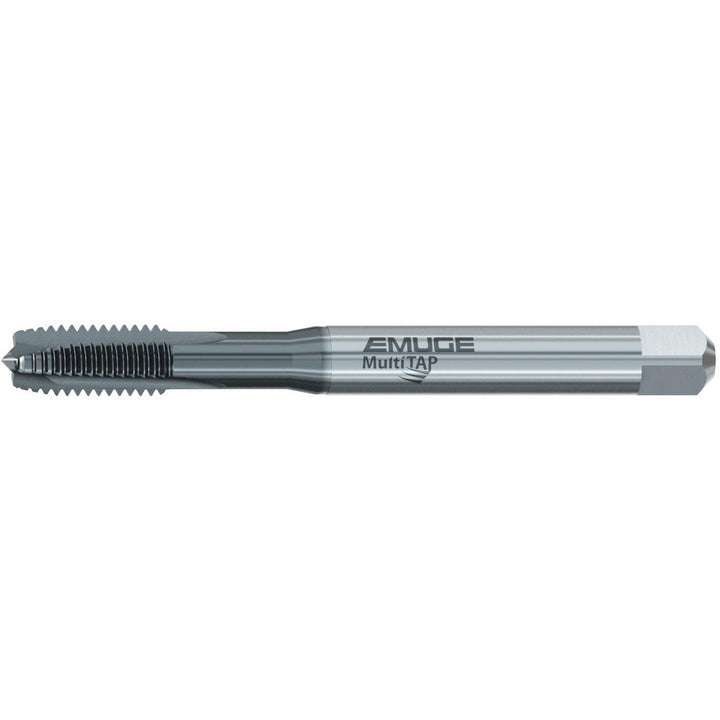

5/16-18 UNC HSS-E Cobalt Spiral Point Tap, TiCN - Emuge BU499300.5010
MFR# BU499300.5010Series BU499300
$27.49List $32.70
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingTiCN
Description
The Emuge BU499300.5010 is a 5/16-18 UNC HSS-E Cobalt Spiral Point tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Cobalt
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Neck length (mm)15.00
Number of flutes3
Overall length3.5430
OversizeNo
Shank diameter0.3180
Square size (mm)6.05
StyleSpiral Point
Threads per inch18
Thread directionRight Hand
Thread length0.7870
Thread pitch0.0556
Thread size in5/16-18
Thread standardUNC
