Emuge

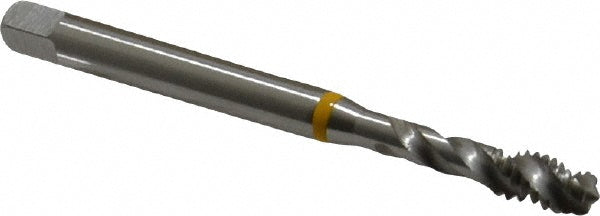

1/4-20 UNC Cobalt Tap - Emuge BU501010.5009
MFR# BU501010.5009Series Enorm
$39.26List $46.70
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
Description
The Emuge BU501010.5009 is a 1/4-20 UNC Cobalt tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit3B
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle35
MaterialCobalt
Material applicationNon-Ferrous Metal; Steel
Number of flutes3
Overall length3.1500
OversizeNo
Shank diameter0.2550
Square size0.1910
Tapping depth1.1810
Threads per inch20
Thread directionRight Hand
Thread length0.5120
Thread size in1/4-20
Thread standardUNC
